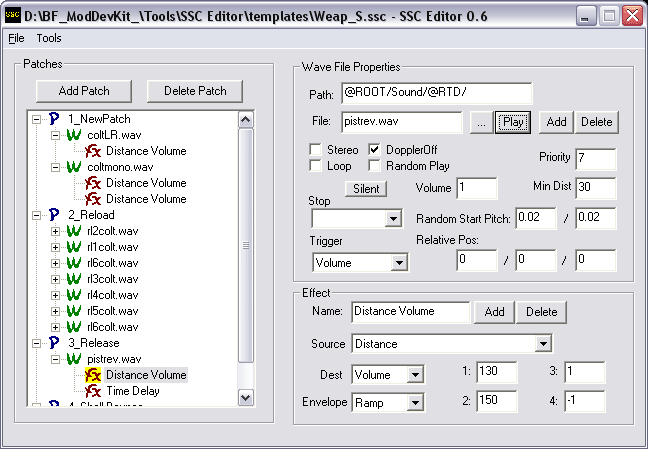

File
Menu CommandsNew: Creates a
new sound script that is empty or based on a template.
Open:
Loads a sound script (.ssc) file into the editor
Save: Saves
the sound script (.ssc) file to the disk
Save As: Saves
the sound script (.ssc) file to the disk with a new name
Exit: Quits
the program Tools Menu Commands
Settings: Type
in the path where the .wav sound files are extracted to.
If the extracted sound files are
on the disk as:
D:\unpackedRFAs\sounds\22khz\aircraftEngine.wav
You would then type in the below line of text in the @Root
settings dialog:
D:\unpackedRFAs\
Patches Group
Add Patch: Adds
a new sound patch to the tree view below
Delete Patch: Deletes
the selected sound patch from the tree view below
Wave File Properties
Each patch contains a series of
.wav files displayed as children in the tree view
Path: This
path prefixes the wav file name (@ROOT/Sound/@RTD/ is normal)
File: The .wav filename
... : Browse
for new .wav filename
Play: Plays
the currently selected .wav file if possible (Settings under
Tools menu must be configured first).
Add: Adds
another Wave file to the current patch
Delete: Removes
the currently selected Wave File child from the current patch
Stereo: Flags
the .wav file to be played in stereo
Loop: Sets
looping playback of the .wav file
DopplerOff: Turns
off the doppler-effect (frequency of the sound changes depending
on speed and direction of travel relative to the camera)
Random Play: Places
this .wav file to the list of several .wav files chosen at
random to play
Silent: Sets
this .wav file to make no sounds (a placeholder)
Volume: changes
the volume that the .wav file is played back at
Priorty: Sets
the priority this .wav file as over other .wav files being
played
MinDist: Sets
the minimum distance to the object before the sound playback
is triggered
Stop: Changes
when the .wav file is stopped (Finished out sample, or cut
short)
Trigger: Sets
the method of triggering the .wav file
Random Start Pitch: This
starts the sound file Left and Right channels at random pitches
with the values set
Relative Pos: Allows
changing the origin of the .wav sound playback in 3d space
Effect Group
Name: The
name of the effect
Add: Adds
an additional effect to the current .wav file
Delete: Removes
the selected effect from the current .wav file
Source: Changes
the source of this effect
Dest: Changes
the destination for this effect
Envelope: Changes
the envelope type
1,2,3,4: These
boxes allow entry of specific effect type settings.
|
